Cartoning
Highlights:
- Complete range to handle american type carton, wrap-around cartons and crates.
- Extremely versatile solution in order to meet any production requirements: from low to high output, including special and customized cartooning configuration.
- Reliability: great precision and repeatability of movements.
- Operational flexibility and change-over downtime reduction.
- Limiting maintenance and components subject to wear (e.g. lubrication-free transmission).
Complete solutions for cartoning and crating/decrating
Many years of experience, continuous research and development together with a great attention to the demands of an ever evolving packaging industry, have allowed Sipa to offer extremely reliable, flexible and innovative cartoning solutions.
The range of cartoning solutions is in fact one of the most comprehensive available on the market today: Sipa is one of the few vendors able to propose solutions for American-type cartons, plastic crates, trays and wrap-around cartons.
It was designed to meet different levels of speed and to cover all production needs, from the simplest to the most complex packaging configurations handled with robotic solutions.
These applications are definitely across-the-board and are mainly used in the wine, beer and spirit sectors in general, but there are also many applications for mineral water, beverages, juices and edible oil in glass and PET bottles.
MODELS:
JOLLY: automatic case packer, crater/decrater with single headSILENT: conventional automatic case packer, crater/decrater multi-head
ROBBY PACK: robotic case packer, crater/decrater
UNIWRAP: Wrap-around case packer
FORMEX: Automatic carton erector
STICK- STRIP: Automatic carton sealer
INSERT: Automatic partition inserter
OUTPUT:
JOLLY: Up to 600 cycles/hourSILENT: Up to 550 cycles/hour (multi-head)
ROBBY PACK: Up to 550 cycles/hour
Its modular nature allows implementing plants with very different capacities: from the lowest (2,000 b/h), up to the highest multi-head configurations with double lane carton feed (above 130,000 b/h).
UNIWRAP: from 20 to 45 cartons/minute
FORMEX: Up to 40 cartons/minute
INSERT: Up to 70 partitions /minute
STICK- STRIP: Up to 40 cartons/minute
Main features and advantages

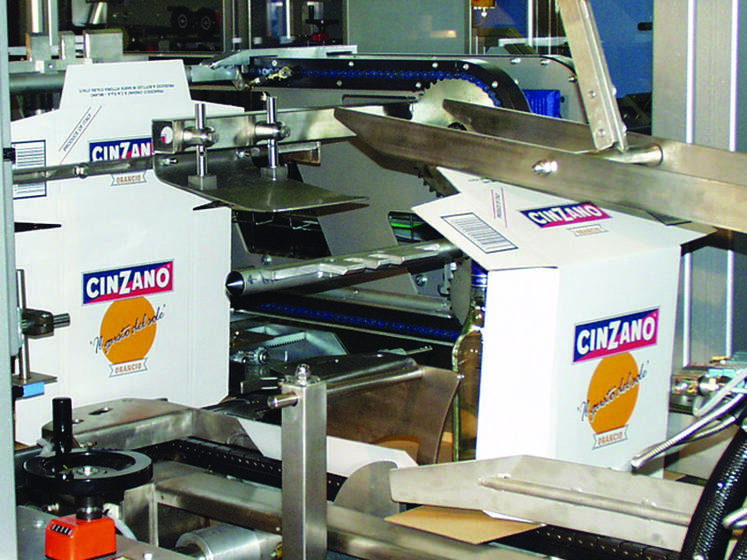

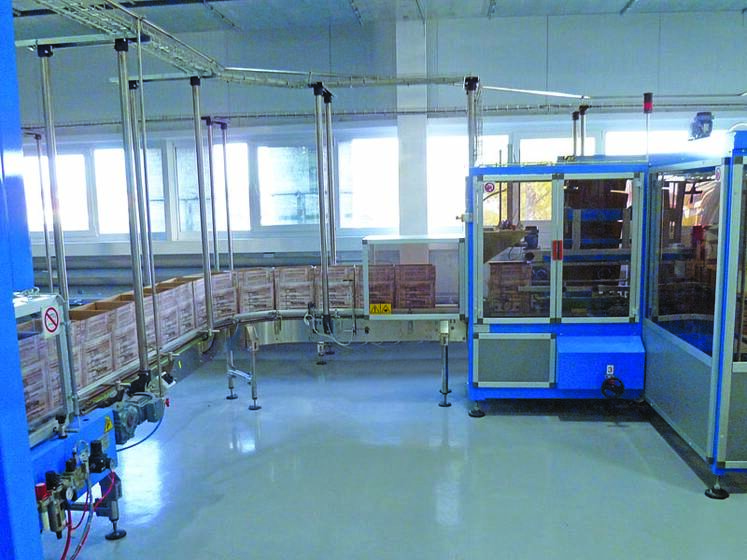

Continuous movement craters/decraters and case packers equipped with different pick-up heads depending on the specific needs of each Customer.
This range of machines is designed to handle different type of containers such as bottles, jars and cans into American-type cartons, plastic crates and trays.
Depending on the product, the machine can be equipped with: pneumatic membrane gripping heads, grippers, suckers, magnetic plates, vacuum heads, etc.., and can handle a variable number of containers in different configurations (2x3, 4x3, etc.).
The gripping heads are mounted on a solid traversing system controlled by an inverter, which ensures a precise, harmonic and reliable movement over time. It is actuated by a gear box which transforms the continuous motion of the geared motor into reciprocating motion.

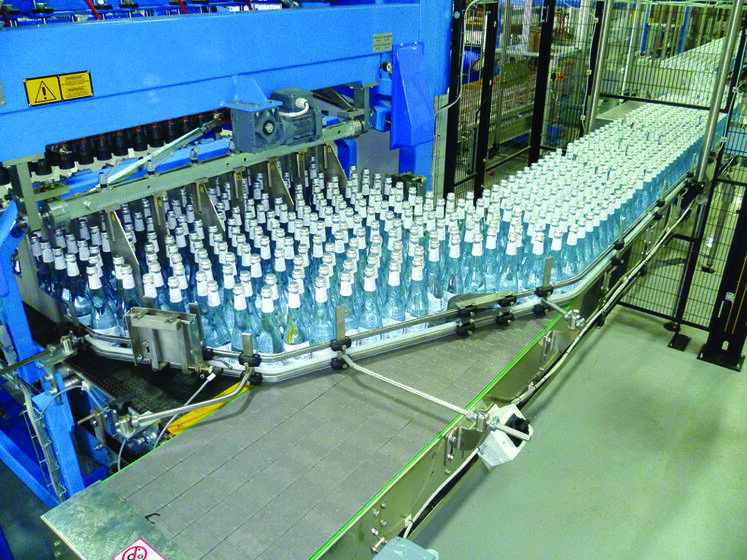

The bottle feed can be orthogonal or parallel to the sliding belt of the cases / cartons, moreover the bottle channelling system also includes a shaking device that prevents jamming.
Solutions to simplify the changeover and the handling of bottles with special shapes are available both for bottle feeding and for head exchange.
The correct insertion of the bottles is guaranteed by the presence of the centring and stop systems of the cartons on the feed belt.
The system is controlled by a PLC and operated via an operator interface touch screen with simple and intuitive controls.

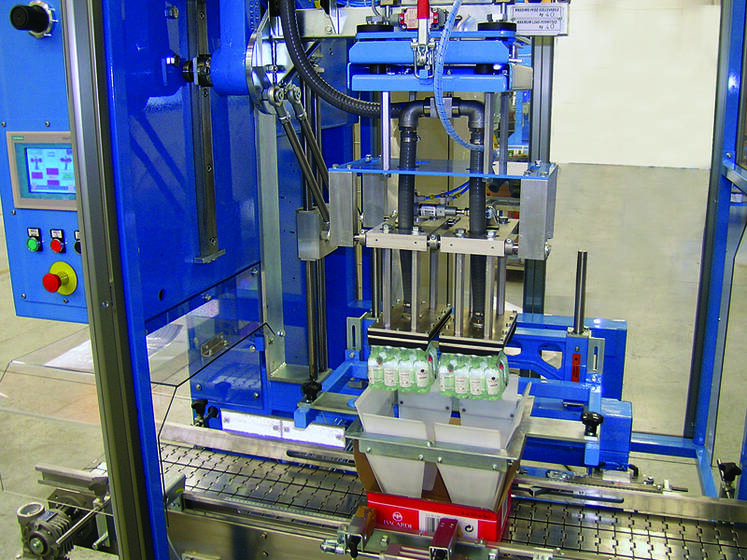

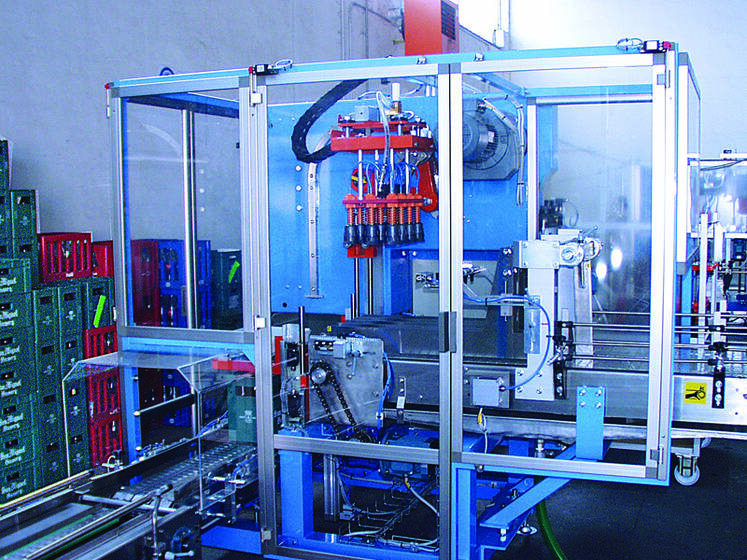

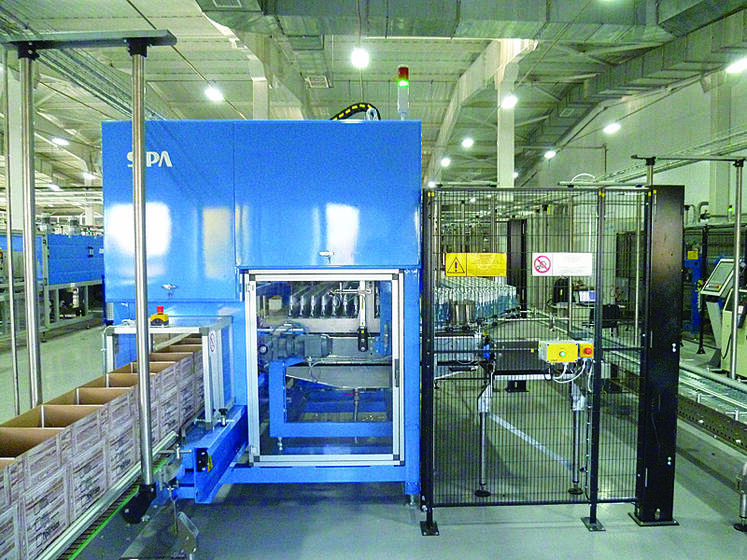

Jolly is the automatic case packer with single or double pick-up head designed for low output lines.

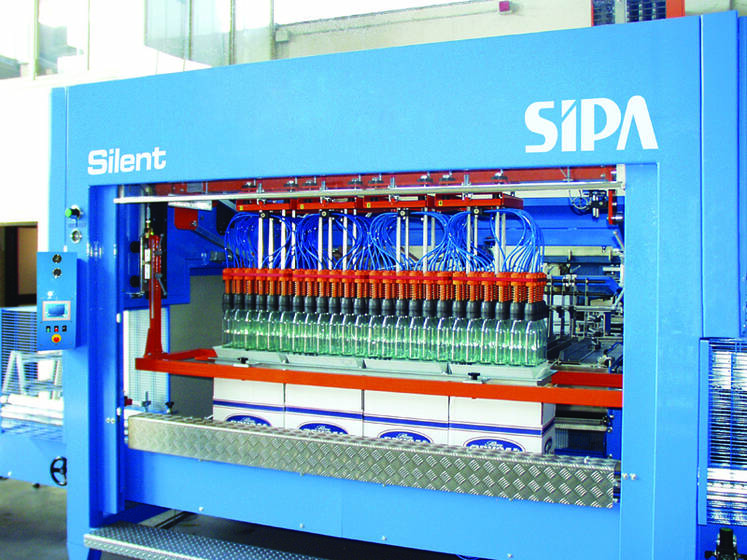

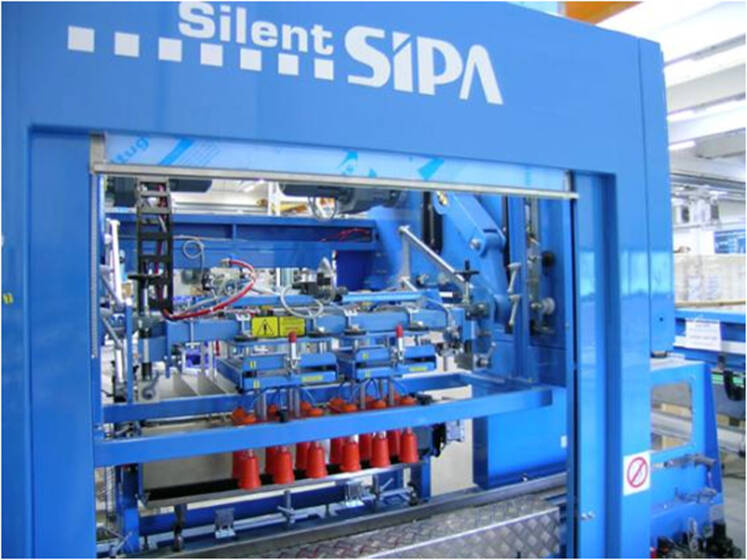

Silent is the multi-head (from 2 to 8) automatic case packer designed for medium/high output lines.
Type of packaging
Products that can be processed
This range of machines is designed to handle different type of containers such as bottles, jars and cans into American-type cartons, plastic crates and trays.
Depending on the product, the machine can be equipped with: pneumatic membrane gripping heads, grippers, suckers, magnetic plates, vacuum heads, etc.., and can handle a variable number of containers in different configurations (2x3, 4x3, etc.).
The gripping heads are mounted on a solid traversing system controlled by an inverter, which ensures a precise, harmonic and reliable movement over time. It is actuated by a gear box which transforms the continuous motion of the geared motor into reciprocating motion.
The bottle feed can be orthogonal or parallel to the sliding belt of the cases / cartons, moreover the bottle channelling system also includes a shaking device that prevents jamming.
Solutions to simplify the changeover and the handling of bottles with special shapes are available both for bottle feeding and for head exchange.
The correct insertion of the bottles is guaranteed by the presence of the centring and stop systems of the cartons on the feed belt.
The system is controlled by a PLC and operated via an operator interface touch screen with simple and intuitive controls.
Jolly is the automatic case packer with single or double pick-up head designed for low output lines.
Silent is the multi-head (from 2 to 8) automatic case packer designed for medium/high output lines.
Type of packaging
- America type cartons
- Plastic crates
- Trays
Products that can be processed
- PET bottles
- Glass bottles
- Cans
- Jars
- Tin containers

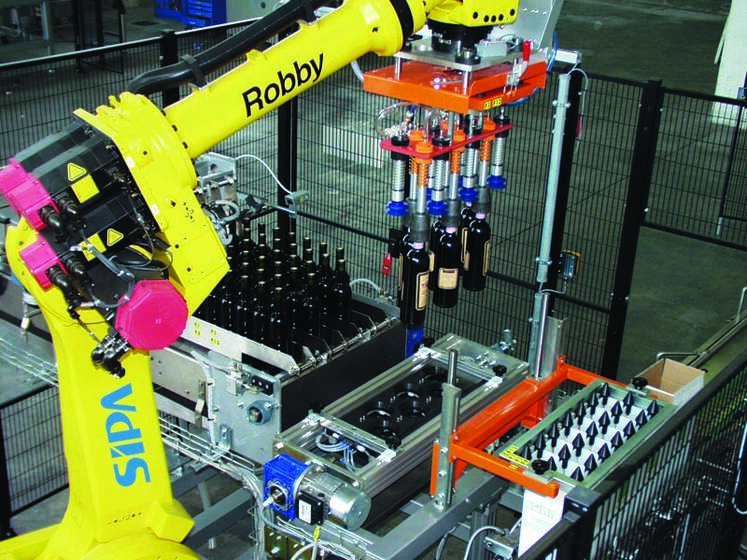

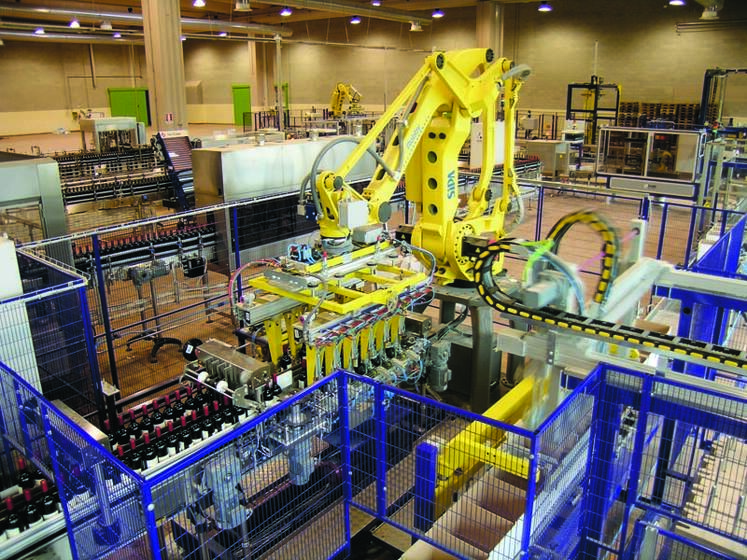

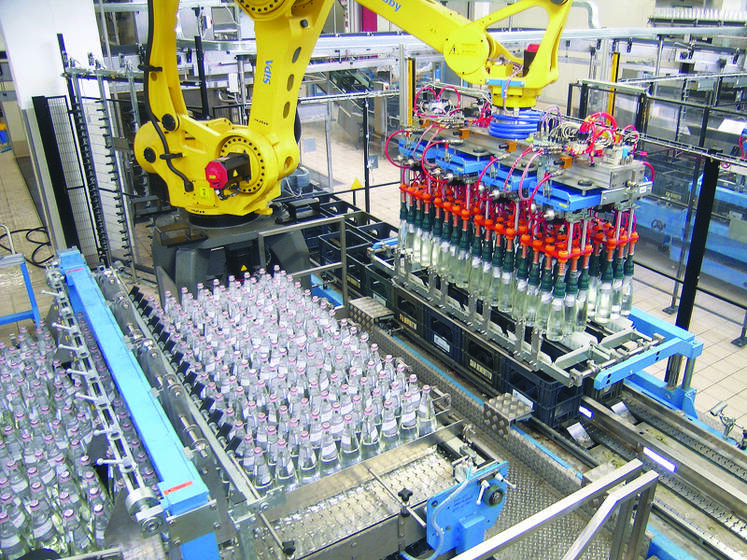

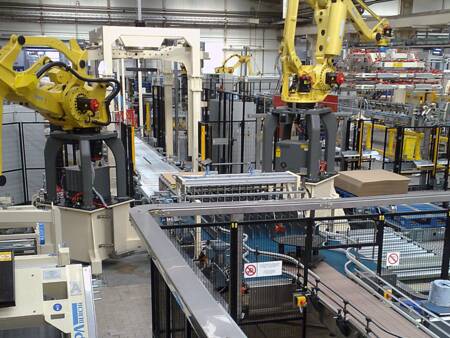

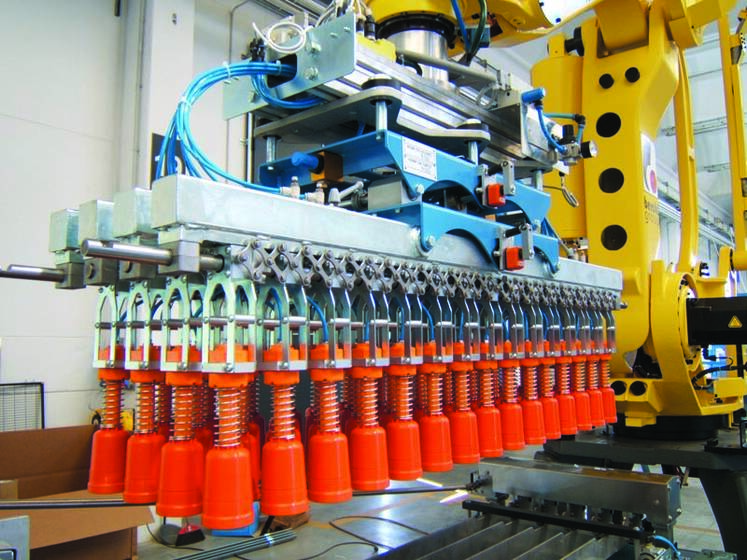

Robotic craters/decraters and case packers for handling different type of containers such as bottles, jars and cans into American-type cartons, plastic crates and trays, designed for high-speed lines or to fulfil special packaging requests.
Thanks to the use of a 4 or 6 axis robotic arm combined with the use of specific gripping heads, Robby Pack is suitable for complex handling, ideal for any size, packaging and production capacity.
Flexibility, accuracy, and repeatability of movements also enable carrying out complex handling as in the case of packing horizontal, crossed, flipped bottles, with or without the insertion of partitions or interlayer pads, in addition to the vertical insertion of bottles.
Depending on the product, the machine can be equipped with: pneumatic membrane gripping heads, grippers, suckers, magnetic plates, vacuum heads, etc.., and can handle a variable number of containers in different configurations (2x3, 4x3, etc.).
Upon request, the equipment changeover can be fully automated, leaving the movement and positioning of the elements to the robot’s arm.
Robby Pack is a very versatile and modular system: it can be customized according to specific requirements and configured to manage multiple lines or to be easily integrated into existing lines.
The solution is designed according to the production needs of the customer, in order to manage different bottle feeding solutions, to cope with a variable number of crate and carton handling and the eventual integration of accessory items (such as partition inserters, etc.).
Whatever the layout of the final solution, it is however extremely compact, and is able to adapt easily to the architectural constraints and existing space in the dedicated area.
The system is controlled by a PLC and operated via an operator interface touch screen with simple and intuitive controls.
Type of packaging
Products that can be processed
Thanks to the use of a 4 or 6 axis robotic arm combined with the use of specific gripping heads, Robby Pack is suitable for complex handling, ideal for any size, packaging and production capacity.
Flexibility, accuracy, and repeatability of movements also enable carrying out complex handling as in the case of packing horizontal, crossed, flipped bottles, with or without the insertion of partitions or interlayer pads, in addition to the vertical insertion of bottles.
Depending on the product, the machine can be equipped with: pneumatic membrane gripping heads, grippers, suckers, magnetic plates, vacuum heads, etc.., and can handle a variable number of containers in different configurations (2x3, 4x3, etc.).
Upon request, the equipment changeover can be fully automated, leaving the movement and positioning of the elements to the robot’s arm.
Robby Pack is a very versatile and modular system: it can be customized according to specific requirements and configured to manage multiple lines or to be easily integrated into existing lines.
The solution is designed according to the production needs of the customer, in order to manage different bottle feeding solutions, to cope with a variable number of crate and carton handling and the eventual integration of accessory items (such as partition inserters, etc.).
Whatever the layout of the final solution, it is however extremely compact, and is able to adapt easily to the architectural constraints and existing space in the dedicated area.
The system is controlled by a PLC and operated via an operator interface touch screen with simple and intuitive controls.
Type of packaging
- American-type cartons
- Plastic crates
- Trays
Products that can be processed
- PET bottles
- Glass bottles
- Cans
- Jars
- Tin containers

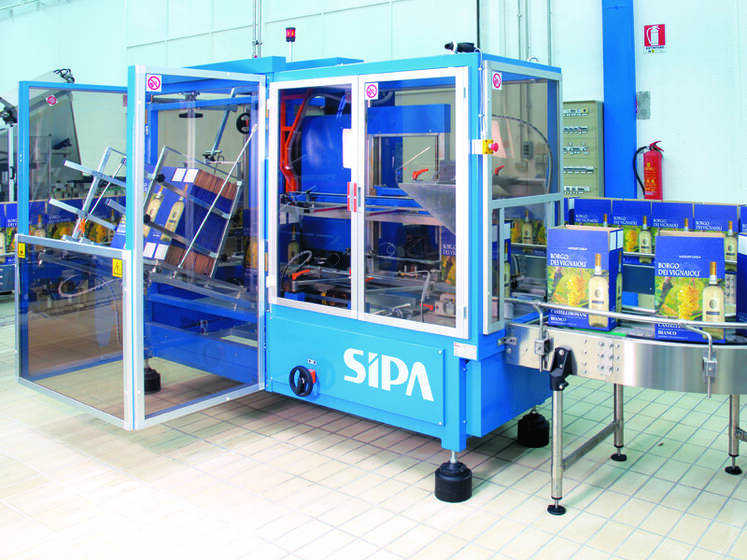

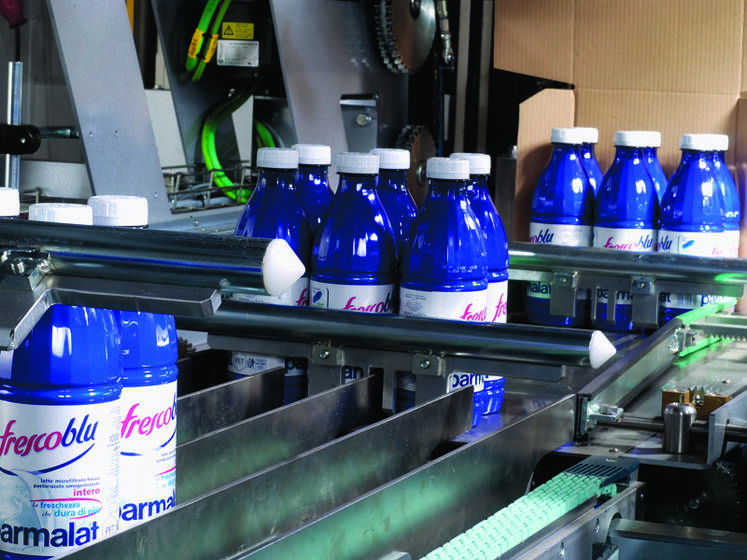

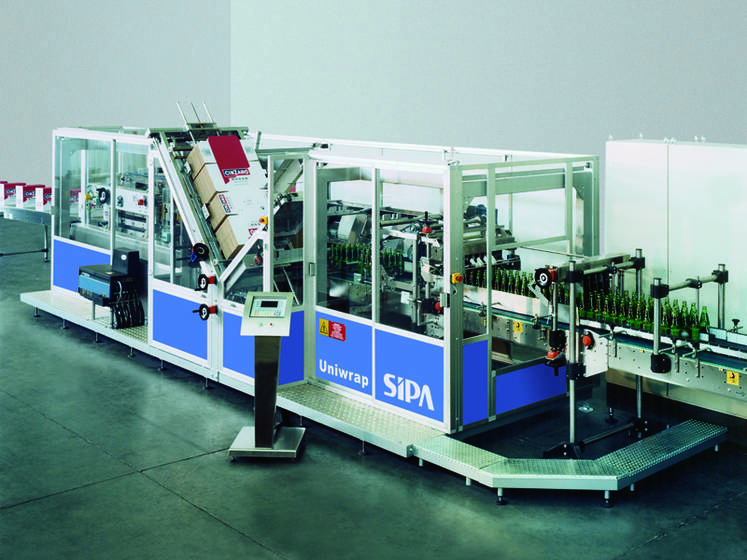

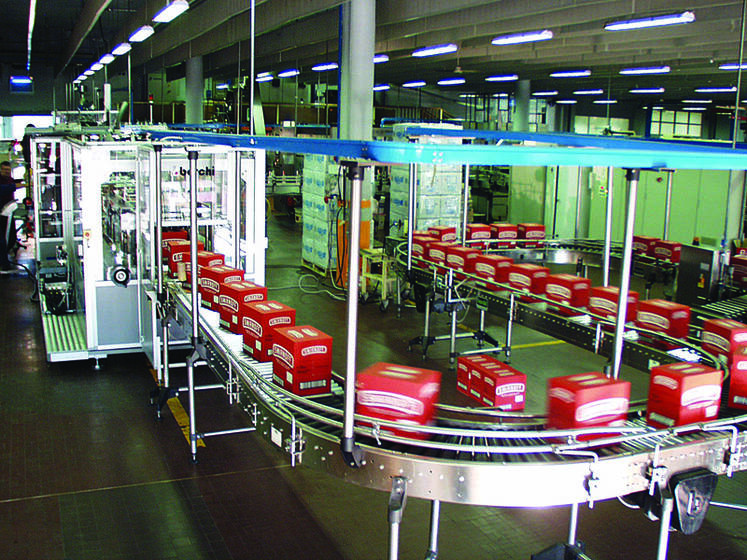

The continuous movement wrap-around case packer is designed with a modular concept in order to handle a wide range of sizes and speeds.
The Uniwrap is manufactured to package, with customized solutions, every type of bottle, can, jar and tin in open die cut carton through a wrap-around system.
General features
Flat board pre-assembled partitions:
ll Uniwrap cartoning machines can be equipped, in the construction phase or subsequently, with the integrated hive partition inserting device which does not affect the compact size of the machine.
Advantages of this solution compared with corrugated cardboard partitions:
Type of packaging
Products that can be processed
The Uniwrap is manufactured to package, with customized solutions, every type of bottle, can, jar and tin in open die cut carton through a wrap-around system.
General features
- Fast changeover which does not require the replacement of any component of the machine.
- The machines are very compact and with the best category longitudinal overall dimension.
- All movements are controlled and electronically synchronized by brushless motors.
- The moving parts and transmissions are extremely solid and lubricant-free.
- An integrated partition inserting device is available upon request.
- Readily accessible pre-cut carton magazine.
- Reliable and accurate separation and positioning system of pre-cut cartons, perfectly synchronized with the passage of the bottles.
- The bottle/pre-cut carton matching is at a constant speed in order to avoid any jamming.
- The flexibility of the machine allows handling PET bottles as well as special shapes (oval, truncated cone, etc.).
- Upper side flaps sealer with HOT MELT glue and final pressing system for a perfect closure.
- .
Flat board pre-assembled partitions:
ll Uniwrap cartoning machines can be equipped, in the construction phase or subsequently, with the integrated hive partition inserting device which does not affect the compact size of the machine.
Advantages of this solution compared with corrugated cardboard partitions:
- Saving of 30% in partition purchase costs.
- Reduction of 65% of the storage volume.
- Only one feeding and control point
- The flat cardboard is much less affected by harsh environmental conditions during the storage period.
Type of packaging
- Wrap-around cartons
Products that can be processed
- PET bottles
- Glass bottles
- Jars
- Tin containers

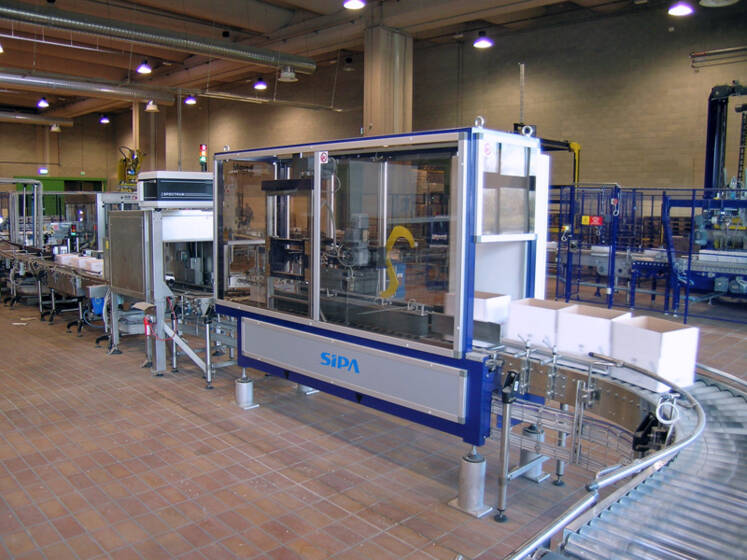

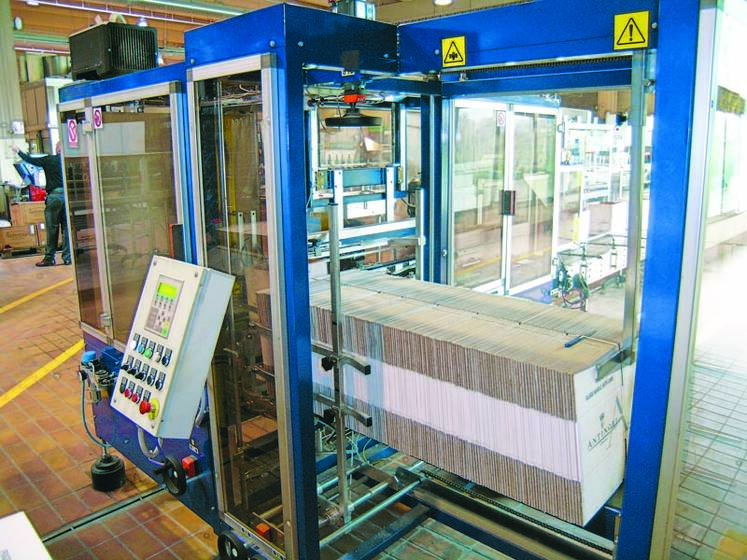

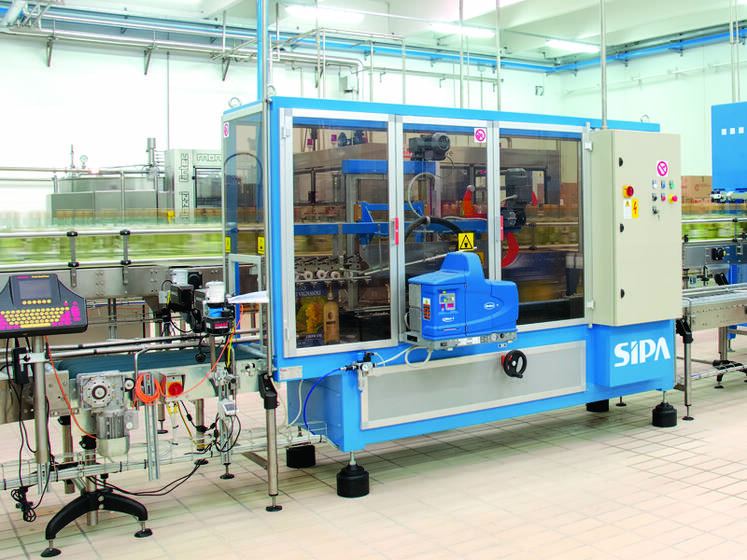

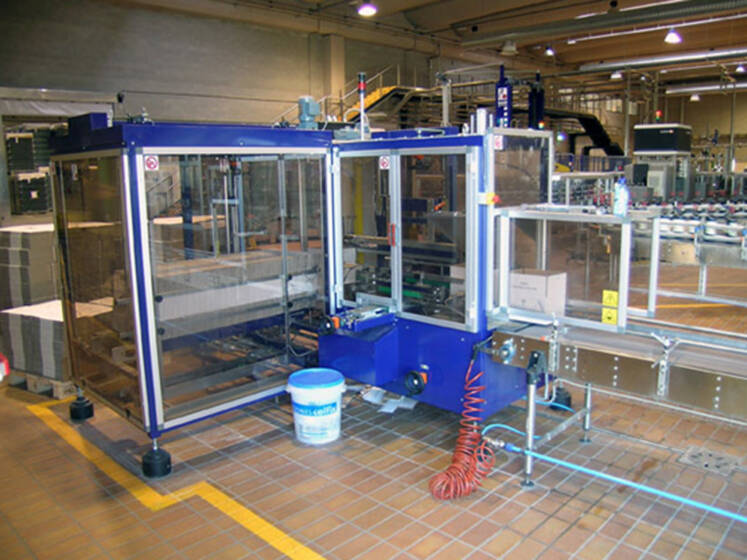

Automatic carton erector for American-type cartons, with the following features:
The version to form the cartons and close the lower flaps without glue (FORMEX), as well as the version with HOT MELT glue (FORMEX H) or the one with adhesive tape (FORMEX N) are available.
- Carton magazine with adjustable guides, with a maximum capacity of up to 180 cartons.
- Carton picking and opening assembly, consisting of a set of suckers and continuous mechanical movement.
- Motor-driven assembly moving the opened cartons forward.
The version to form the cartons and close the lower flaps without glue (FORMEX), as well as the version with HOT MELT glue (FORMEX H) or the one with adhesive tape (FORMEX N) are available.

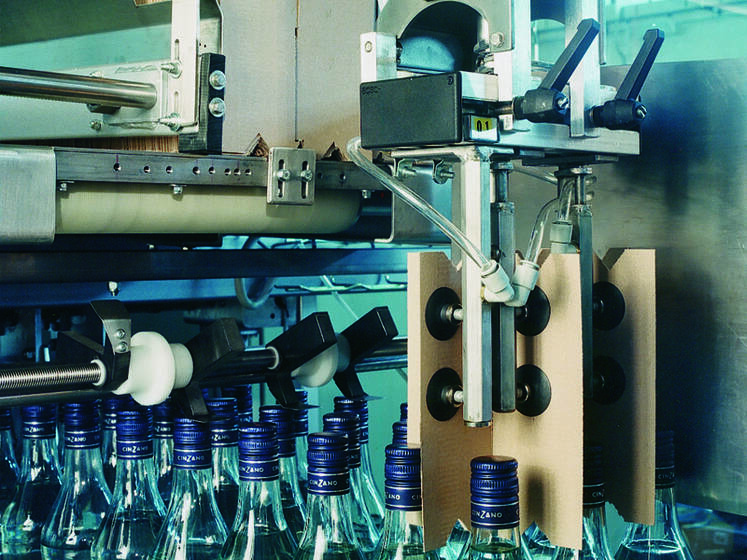

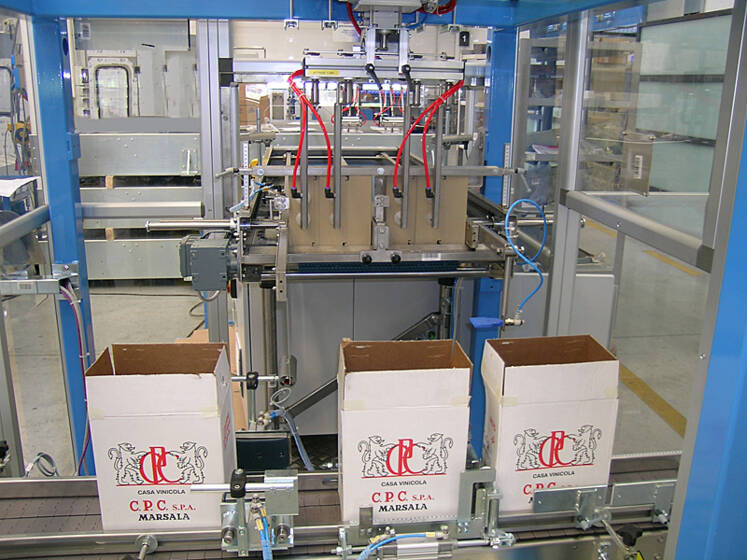

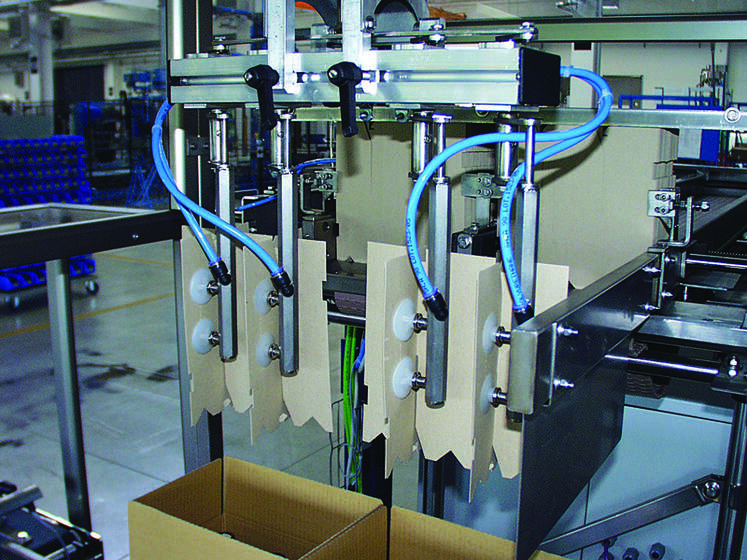

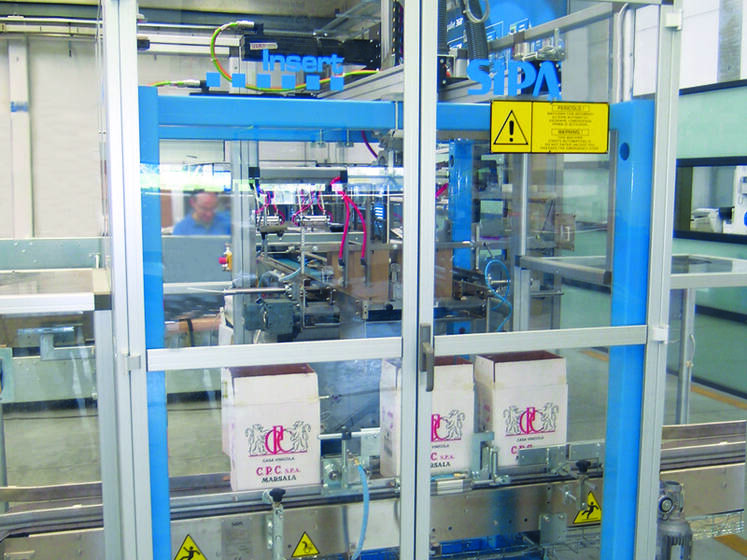

Automatic partition inserting machine to open and place flat board preassembled partitions in the carton before or after bottle inserting.
The machine is available in 3 versions :
Each portal is equipped with one gripping head; the version with two heads in case of 6 bottles partitioning is also available.
Motorized partition magazine with modular chain.
Partition collecting head with partition opening by pneumatic movement.
Portal movement with brushless motors.
Quick tool-free changeover.
The machine is available in 3 versions :
- Insert 1.1: with 1 portal, 1 partition magazine and 1 lane carton feed.
- Insert 1.2: with 1 portal, 1 partition magazine and 2 lane carton feed.
- Insert 2.2: with 2 portals, 1 partition magazine and 2 lane carton feed.
Each portal is equipped with one gripping head; the version with two heads in case of 6 bottles partitioning is also available.
Motorized partition magazine with modular chain.
Partition collecting head with partition opening by pneumatic movement.
Portal movement with brushless motors.
Quick tool-free changeover.

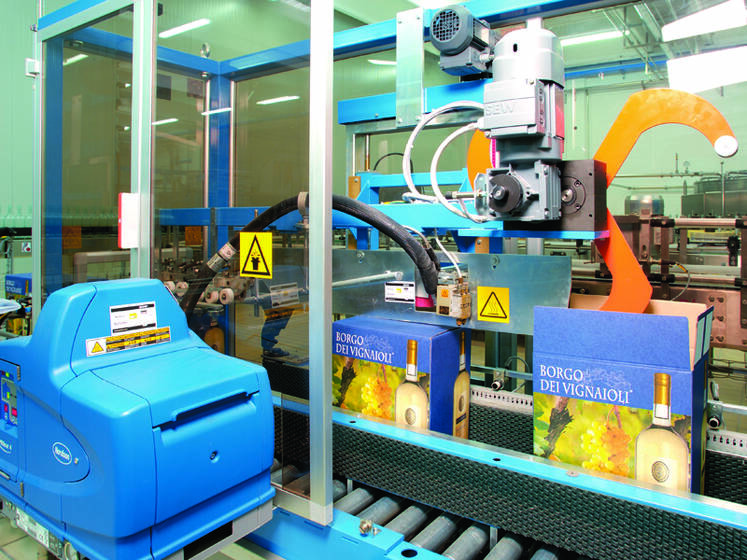

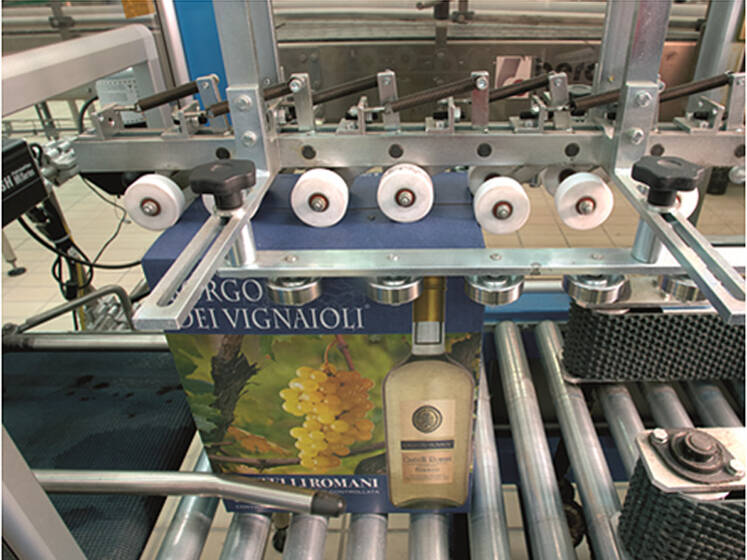

Automatic sealer for closing upper flaps of American-type cartons with “HOT MELT” glue, having the following features:
Both the version to seal the upper flaps (STIK/1), as well as the version to seal the upper and lower flaps (STIK/2) are available.
A STRIP version for sealing upper flaps with PVC adhesive tape is also available.
- Carton conveyors with distributor for cartons and adjustable guides.
- HOT-MELT sealer, complete with injectors and glue heating tray.
- Upper flap pneumatic and mechanic closing device.
- Pressure rollers for upper flaps
Both the version to seal the upper flaps (STIK/1), as well as the version to seal the upper and lower flaps (STIK/2) are available.
A STRIP version for sealing upper flaps with PVC adhesive tape is also available.
Applications
Cartoning solution for handling of bottles, jars and tin container in American type carton, wrap-around carton, plastic crates and trays.
