MASSBLEND
Continuous beverage carbonation and mixing unit

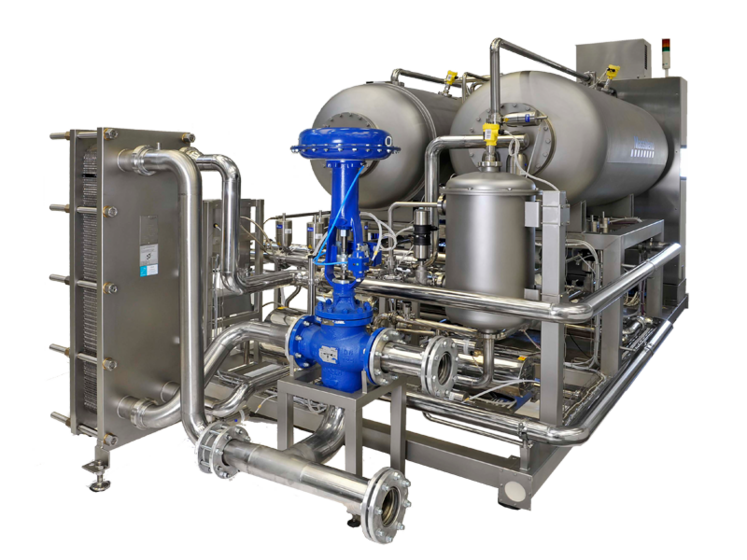

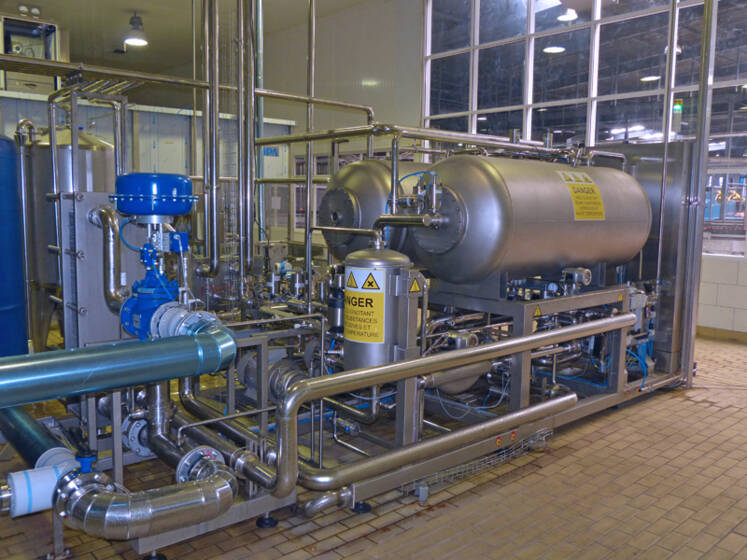

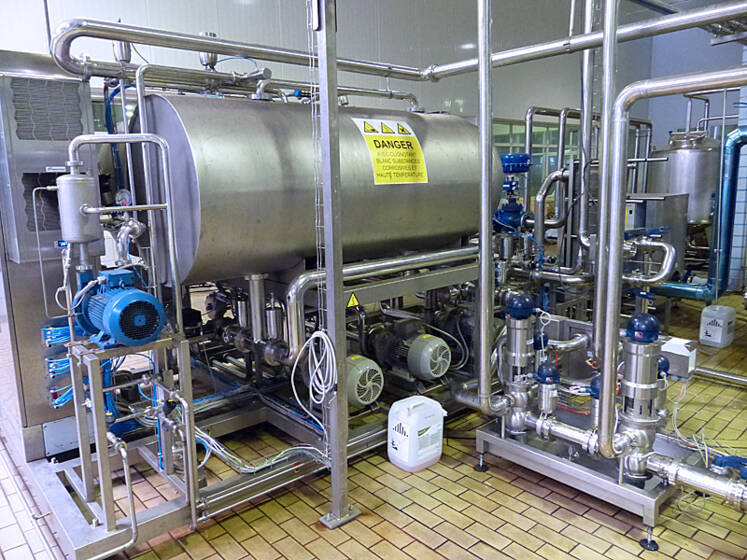

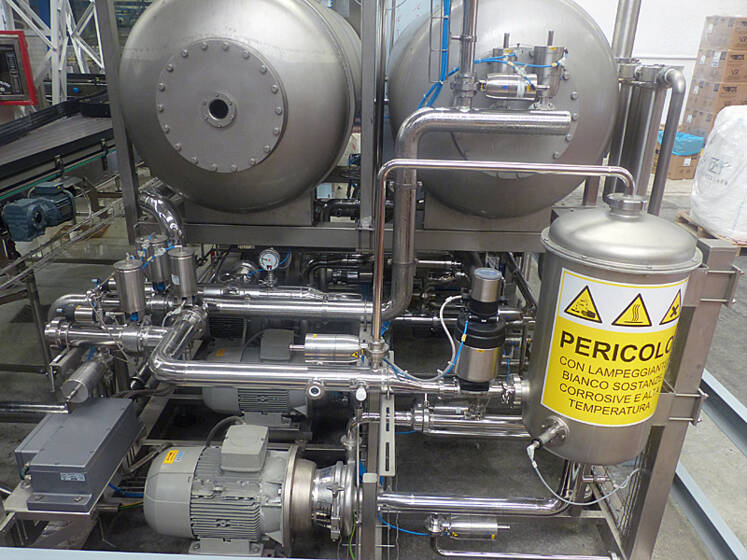

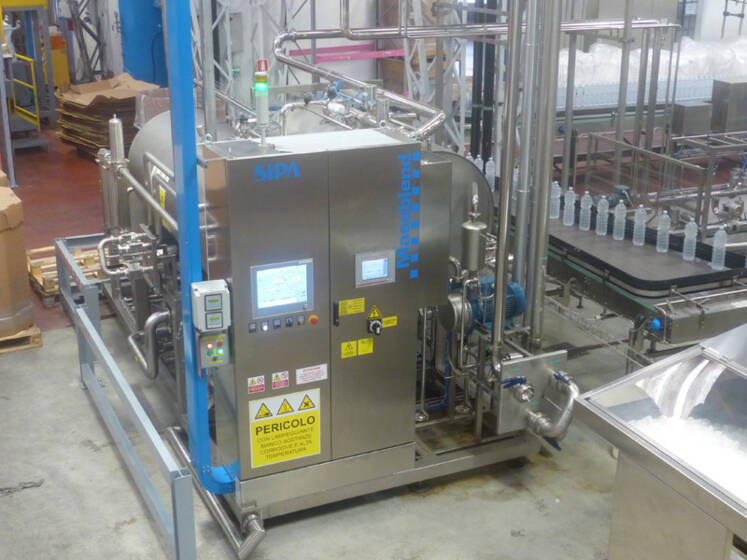

Massblend is a compact continuous mixing unit for the automatic production of carbonated and no-carbonated beverage: the system uses the latest technologies in the mixing and carbonation field; the water deaeration is realized in a high vacuum tank, meanwhile the mixing and the carbonation are obtained using an in line proportional dosing system.
Highlights:
- Highest final product standards in terms of quality, accuracy and repeatability.
- In line CO2 dosing system with special nozzle and mass fllowmeter .
- Starting, Stopping the mixer without syrup and product loss (i.e. flavour change or end of batch)
- Xfill version available, for a direct integration with the filler.
- Mass flow meter to control the CO2 quantity.
- Design extremely compact, thanks to the tank’s horizontal arrangement.
- Very easy logistic: machines are packable in containers for fast installation and commissioning.
Main features and advantages
- In line proportional CO2 dosing system with mass flowmeter

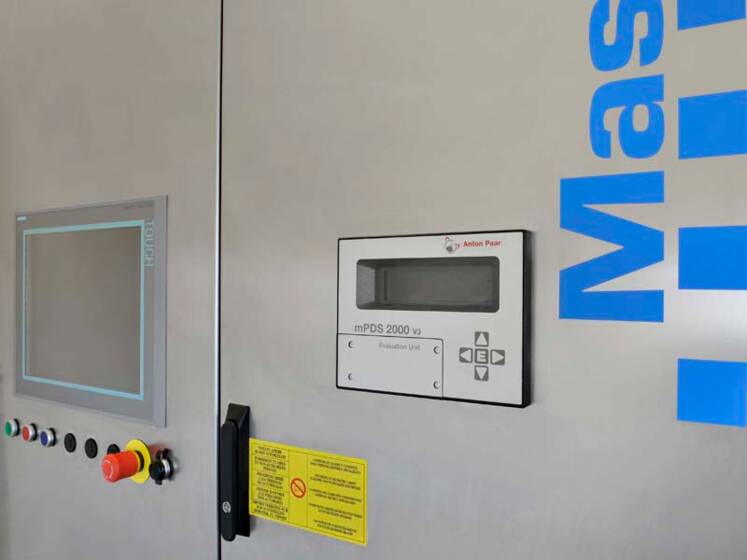

- Fully automatic process controlled by a PLC, menu-based 15-inch touch-screen operator control panel.
- Frequency-controlled pumps.
- Syrup qualty check.
- Highly hygienic design concept, for easy cleaning and to provide the highest levels of sanitation in the equipment.
- Highest final product standards in terms of quality, accuracy and repeatability.
- Product flow control by means of level regulating system in the buffer tank.
- Mixing ratio min ÷ max: 1 : 4 ; 1 : 10
- Outflow rangeability: 1:4.
- Gentle product handling.
- Economical use of space, thanks to the tank’s horizontal arrangement.
- Very easy logistics: machines are packable in containers for fast installation and commissioning.
- Reduced gas consumption through capacity control in accordance with the level in the carbonation tank.
Additional equipments:
- Cooling of the carbonated product including control and measuring equipment
- Quantity measurement for oxygen, CO2, Oxygen, °Bx etc.
- Piping exposed to product is made of 1.4401 stainless steel (AISI316).
- Mixing ratio up to 1:1.
- Energy saving thank to insulation of the product buffer tank.
- Double stage deaeration with high vacuum principle
- Carbonation min ÷ max: 1,5 ÷ 4,5 V/V
- Dosing accuracy for CO2: ± 0,05 g/l of CO2 or better (in steady conditions)
- Dosing accuracy for syrup: ± 0,03 °Bx or better (in steady conditions)
- Cpk capability > 1,33 related to final product.
- Residual oxygen in the final beverage: < 1 ppm
Degassing
The inlet water is finely atomized by using a specific diffuser, the residual oxygen is removed from water by using the deaeration with high vacuum principle. A flow meter indicates the water that is sent to the mixing system by using a sanitary centrifugal pump.
Blending
The amount of water serves as a reference variable for the dosing of syrup.
The flow meter measures the Brix value of the sugar syrup and uses the data to control the mixing ratio.
The syrup is dosed using a frequency-controlled pump, a modulating control valve and a pressure measuring device.
Utilising the constant pressure on the control valve, the syrup is dosed with highest accuracy.
Practically 100% syrup utilization, including the mixing phase from the syrup room
Carbonation
The CO2 is fed via a control valve and it is measured with a mass flow meter.
By means of a special injector nozzle the CO2 is finely dissolved to guaranteed the maximum solubility in the treated product utilising just the required amount for the beverage carbonation.
The inlet water is finely atomized by using a specific diffuser, the residual oxygen is removed from water by using the deaeration with high vacuum principle. A flow meter indicates the water that is sent to the mixing system by using a sanitary centrifugal pump.
Blending
The amount of water serves as a reference variable for the dosing of syrup.
The flow meter measures the Brix value of the sugar syrup and uses the data to control the mixing ratio.
The syrup is dosed using a frequency-controlled pump, a modulating control valve and a pressure measuring device.
Utilising the constant pressure on the control valve, the syrup is dosed with highest accuracy.
Practically 100% syrup utilization, including the mixing phase from the syrup room
Carbonation
The CO2 is fed via a control valve and it is measured with a mass flow meter.
By means of a special injector nozzle the CO2 is finely dissolved to guaranteed the maximum solubility in the treated product utilising just the required amount for the beverage carbonation.
Applications
Preparation of CSD, carbonated mineral water, juices and other non carbonated products.
Production range
| MODEL | CAPACITY |
|---|---|
| Massblend 12 | Up to 12,000 l/h |
| Massblend 17 | Up to 17,000 l/h |
| Massblend 27 | Up to 27,000 l/h |
| Massblend 34 | Up to 34,000 l/h |
| Massblend 42 | Up to 42,000 l/h |
| Massblend 54 | Up to 54,000 l/h |
| Massblend 66 | Up to 66,000 l/h |
