CARBO-MW

Continuous degassing and carbonation unit for mineral water

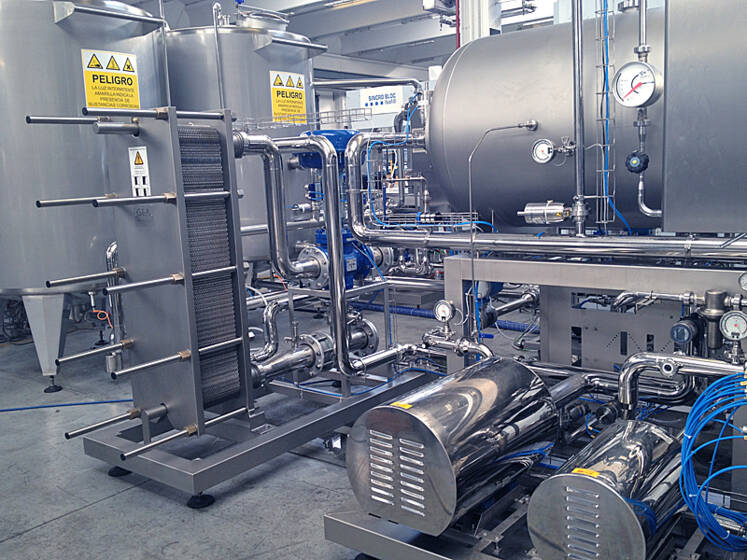

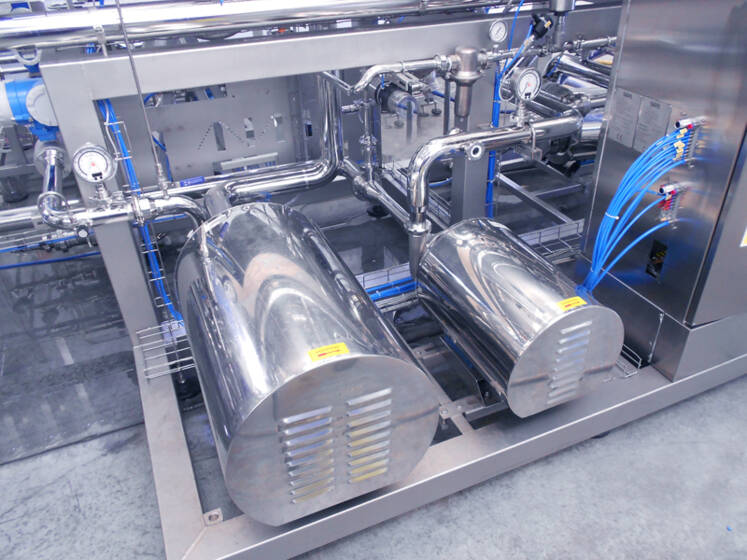

Carbo-MW is a compact deaerating and carbonating unit for the automatic production of carbonated water
In this process, the system uses water deaeration carried out in a CO2-saturated tank, combined with the latest technology in the field of carbonation.

HIGHLIGHTS

  • Highest final product standards in terms of quality, accuracy and repeatability.
  • The carbonation is obtained by using an in line proportional dosing of CO2.
  • Xfill version available, for a direct integration with the filler.
  • Mass flow meter to control the CO2 quantity.
  • Design extremely compact, thanks to the tank’s horizontal arrangement.
  • Very easy logistic: machines are packable in containers for fast installation and commissioning.

Main features and advantages


GENERAL FEATURES
  • In line proportional CO2 dosing system with mass flowmeter
  • Fully automatic processcontrolled by a PLC, menu-based 15-inch touch-screen operator control panel.
  • Frequency-controlled pumps.
  • Highly hygienic design concept, for easy cleaning and to provide the highest levels of sanitation in the equipment.
  • Highest final product standards in terms of quality, accuracy and repeatability.
  • Product flow control by means of level regulating system in the buffer tank.
  • Outflow rangeability: 1:4.
  • Gentle product handling.
  • Economical use of space, thanks to the tank’s horizontal arrangement.
  • Very easy logistics: machines are packable in containers for fast installation and commissioning.
  • Reduced gas consumption through capacity control in accordance with the level in the carbonation tank.

Additional equipments:
  • Cooling of the carbonated product including control and measuring equipment.
  • Quantity measurement for oxygen, CO2, etc.
  • Piping exposed to product is made of 1.4401 stainless steel (AISI316).
  • Energy saving thank to insulation of the product buffer tank.
  • Double stage deaeration with high vacuum principle.

FINAL PRODUCT PERFORMANCE
  • Carbonation range: 1,5 ÷ 4,5 V/V
  • CO2 control accuracy: ± 0.05V/V or better in any condition
  • Cpk capability > 1,33 related to final product.

PRINCIPLE OF OPERATION
Degassing
The water is guided to a horizontal degassing tank. Individually water operated spraying nozzles in the tank enable a speed control. Degassing is affected by CO2 counter pressure or the principle of high vacuum in option, after which a flow meter measures the amount of water to be pumped for the beverage production

Carbonation
The CO2 is fed via a control valve and measured with a mass flow meter, using an in line proportional dosing system.
Thanks to a special injector nozzle, the CO2 is finely dissolved to guarantee the maximum solubility in the treated product, utilising exactly the amount required for the beverage carbonation.



CARBO-MW APPLICATIONS

Carbonated mineral water and flavoured water


MODEL CAPACITY
Carbo-MW 12 Up to 12,000 l/h
Carbo-MW 27 Up to 27,000 l/h
Carbo-MW 34 Up to 34,000 l/h
Carbo-MW 42 Up to 42,000 l/h
Carbo-MW 54 Up to 54,000 l/h
Carbo-MW 66 Up to 66,000 l/h
