Highlights:

  • Our solution has been designed to comply with the strictest food hygiene standards, with great attention to operators safety.
  • Extremely flexible solutions suitable for Hot Fill, CSD and multipurpose lines.
  • Reliable solution with a  modular concept: the type of machine and a variable number of tanks guarantee a perfect match of each production requirements.
  • Optimized process for timing, waste and consumption reduction.
  • Tanks and piping in stainless steel 1.4301 (AISI304), perfectly suitable for the most part cleaning fluids.
  • Skid assembly extremely compact and ergonomic, this allows installation time reduction and eases the maintenance activities.

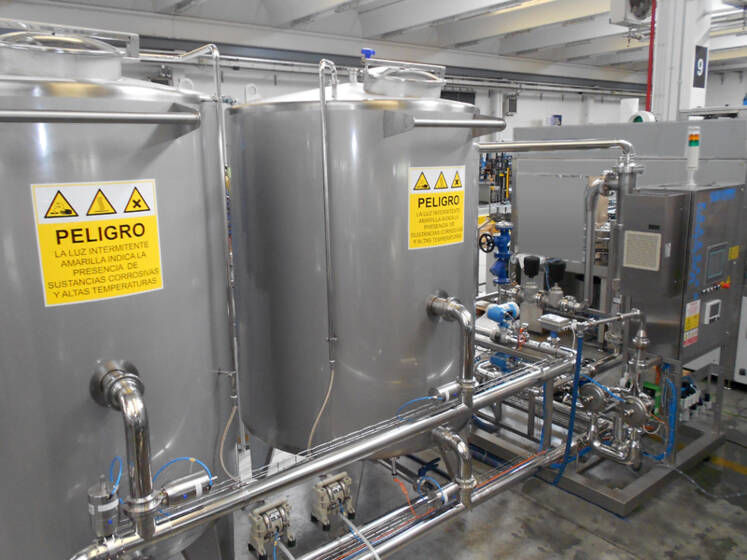

CIP sanitizing unit

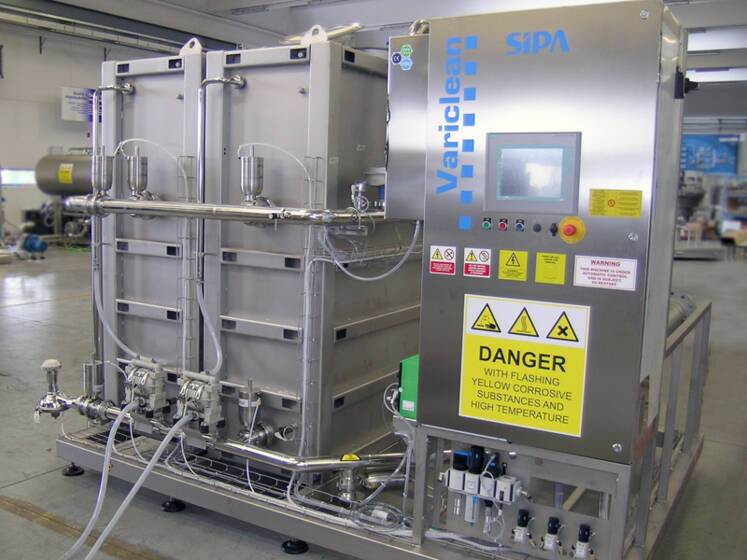

Variclean is a compact unit (on skid assembly) used to wash all the process unit involved in the foodstuff preparation. The module is available both fully automatic and semi-automatic, from the heating stage to the measuring of cleaning fluids and disinfectants, and from the cleaning cycle to the rinsing for the removal of reagents.



MODELMAX FLOW RATE OF WASHING
Variclean 12Up to 12,000 l/h
Variclean 17Up to 17,000 l/h
Variclean 27Up to 27,000 l/h
Variclean 34Up to 34.000 l/h
Variclean 42Up to 42.000 l/h
Variclean 54Up to 54.000 l/h
Variclean 66Up to 66.000 l/h

MODELS:

Depending on the final use it can be provided both in semi-automatic or fully automatic configuration, with a variable number of tanks from 1 to 4.

Main features and advantages

  • Recovery / preparation tank for washing solution Capacity: 2000 l.
  • Type of solution heating used: saturated steam.
  • Type of heat exchanger:  Pleated tubular made in AISI316 stainless steel.
  • In line injection of sterilising agent by using an electronic dosing pump.
  • Funzionamento macchina completamente automatico controllato mediante unità PLC, completa di pannello interfaccia operatore in modalità touch-screen (montato sul fronte del quadro elettrico).
  • Caustic Soda or Nitric acid concentration: 1 ÷ 3 %.
  • Sterilising solution concentration: 0,2 ÷ 2 %.
  • Temperature control:  +/- 2 °C
The water is automatically loaded in the preparation tank according with the level probes.

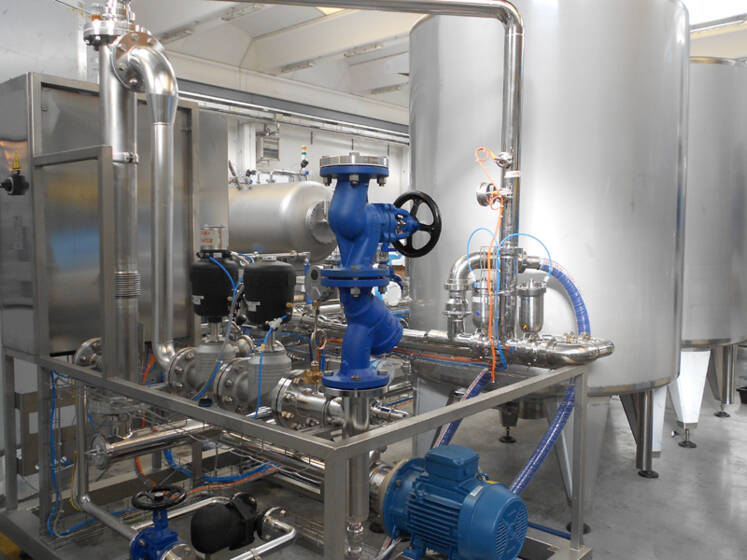

Heating is obtained by re-circulation of the washing solution on the tubular heat exchanger and in the meantime the temperature is controlled with a PID loop and a modulating valve.
The concentration of the washing solution is controlled by a conductivity meter fitted on the recirculation / return pipeline to ensure an accurate and repeatable control.
The concentration of the sterilising solution is obtained by using an electronic dosing pump driven by the flow meter fitted on delivery pipeline to ensure an accurate and repeatable control.
The CIP plant is also equipped with automatic valves needed for the preparation, washing and rinsing cycles required by the sanitizing recipe.


A complete CIP cycle provides:
Rinsing with treated water at ambient temperature for a period of time of 10’.
Hot sanitizing by using a chemical solution, with a concentration 1 ÷ 3 % for 20’.
Rinsing with treated water at decreasing temperature for the time required to remove the reagents from the downstream units or till the end of the cooling of the same.
Flooding of the downstream units by using treated water and sterilizing solution at ambient temperature with a concentration 0,2 ÷ 2 %.
Depending on the number of tanks and type of sanitizing process, the above sequence can be modified accordingly.

At start up, the cleaning cycle is freely selectable, the operator may select, create washing cycles with partial phases, the same way the operator can change the washing time, concentration, flow, pressure etc...
Using the HMI installed on the electrical cabinet the machine can store and retrieve many different cleaning recipes ensuring the maximum flexibility to the end user.


Applications

The sanitizing unit can be designed according to the product to be handled on the line, therefore it can be used for any kind of field: beverage, food and chemicals.
